title: '在 openEuler 22.03 上安装 KubeSphere 实战教程'
|
||||
tag: 'KubeSphere'
|
||||
keywords: 'Kubernetes, KubeSphere, openEuler 22.03 '
|
||||
description: '本文介绍了如何在 openEuler 22.03 LTS SP1 X86 架构服务器上部署 KubeSphere 和 Kubernetes 集群。'
|
||||
createTime: '2023-05-24'
|
||||
author: '老 Z'
|
||||
snapshot: 'https://pek3b.qingstor.com/kubesphere-community/images/openeuler-kubesphere-cover.png'
|
||||
---
|
||||
|
||||
> 作者：老 Z，中电信数智科技有限公司山东分公司运维架构师，云原生爱好者，目前专注于云原生运维，云原生领域技术栈涉及 Kubernetes、KubeSphere、DevOps、OpenStack、Ansible 等。
|
||||
|
||||
## 前言
|
||||
|
||||
### 知识点
|
||||
|
||||
- 定级：**入门级**
|
||||
- KubeKey 安装部署 KubeSphere 和 Kubernetes
|
||||
- openEuler 操作系统的基本配置
|
||||
- Kubernetes 常用工作负载的创建
|
||||
|
||||
### 演示服务器配置
|
||||
|
||||
| 主机名 | IP | CPU | 内存 | 系统盘 | 数据盘 | 用途 |
|
||||
| :---------: | :----------: | :--: | :--: | :----: | :----: | :------------------------------: |
|
||||
| ks-master-0 | 192.168.9.91 | 4 | 16 | 40 | 200 | KubeSphere/k8s-master/k8s-worker |
|
||||
| ks-master-1 | 192.168.9.92 | 4 | 16 | 40 | 200 | KubeSphere/k8s-master/k8s-worker |
|
||||
| ks-master-2 | 192.168.9.93 | 4 | 16 | 40 | 200 | KubeSphere/k8s-master/k8s-worker |
|
||||
| 合计 | 3 | 12 | 48 | 120 | 600 | |
|
||||
|
||||
### 演示环境涉及软件版本信息
|
||||
|
||||
- 操作系统：**openEuler 22.03 LTS SP1 x86_64**
|
||||
- KubeSphere：**3.3.2**
|
||||
- Kubernetes：**v1.25.5**
|
||||
- KubeKey: **v3.0.7**
|
||||
|
||||
## 简介
|
||||
|
||||
本文介绍了如何在 **openEuler 22.03 LTS SP1** X86 架构服务器上部署 KubeSphere 和 Kubernetes 集群。我们将使用 KubeSphere 开发的 KubeKey 工具实现自动化部署，在三台服务器上实现高可用模式最小化部署 Kubernetes 集群和 KubeSphere。我们将提供详细的部署说明，以便读者轻松地完成部署过程。
|
||||
|
||||
## 操作系统基础配置
|
||||
|
||||
请注意，以下操作无特殊说明时需在所有 openEuler 服务器上执行。本文只选取其中一台服务器作为演示，并假定其余服务器都已按照相同的方式进行配置和设置。
|
||||
|
||||
### 配置主机名
|
||||
|
||||
```shell
|
||||
hostnamectl hostname ks-master-0
|
||||
```
|
||||
|
||||
### 配置 hosts 文件
|
||||
|
||||
编辑 /etc/hosts 文件，将规划的服务器 IP 和主机名添加到文件中。
|
||||
|
||||
```shell
|
||||
192.168.9.91 ks-master-0
|
||||
192.168.9.92 ks-master-1
|
||||
192.168.9.93 ks-master-2
|
||||
```
|
||||
|
||||
### 配置基于 SSH 密钥的身份验证
|
||||
|
||||
KubeKey 支持在自动化部署 KubeSphere 和 Kubernetes 服务时，利用密码和密钥作为远程服务器的连接验证方式。本文会演示同时使用密码和密钥的配置方式，因此，需要为部署用户 **root** 配置免密码 SSH身份验证。
|
||||
|
||||
**本小节为可选配置项，如果你使用纯密码的方式作为服务器远程连接认证方式，可以忽略本节内容。**
|
||||
|
||||
本文将 master-0 节点作为部署节点，下面的操作仅需要在 **master-0** 节点操作。
|
||||
|
||||
以 root 用户登陆系统，然后使用 **ssh-keygen** 命令生成一个新的 SSH 密钥对，命令完成后，SSH 公钥和私钥将存储在 **/root/.ssh** 目录中。
|
||||
|
||||
```shell
|
||||
ssh-keygen -t ed25519
|
||||
```
|
||||
|
||||
命令执行效果如下：
|
||||
|
||||
```shell
|
||||
[root@ks-master-0 ~]# ssh-keygen -t ed25519
|
||||
Generating public/private ed25519 key pair.
|
||||
Enter file in which to save the key (/root/.ssh/id_ed25519):
|
||||
Created directory '/root/.ssh'.
|
||||
Enter passphrase (empty for no passphrase):
|
||||
Enter same passphrase again:
|
||||
Your identification has been saved in /root/.ssh/id_ed25519
|
||||
Your public key has been saved in /root/.ssh/id_ed25519.pub
|
||||
The key fingerprint is:
|
||||
SHA256:2OWDf+17N2d10UwoEtpg06Swd9l40NNUNOcZgSLpWME root@ks-master-0
|
||||
The key's randomart image is:
|
||||
+--[ED25519 256]--+
|
||||
| . =+*o ooB=|
|
||||
| + Eo*+.o.*|
|
||||
| . B B.+o +o|
|
||||
| = * . .o|
|
||||
| . S o .|
|
||||
| . . . o|
|
||||
| . . . o|
|
||||
| . . .=|
|
||||
| o++|
|
||||
+----[SHA256]-----+
|
||||
```
|
||||
|
||||
接下来，输入以下命令将 SSH 公钥从 **master-0** 节点发送到其他节点。命令执行时输入 **yes**，以接受服务器的 SSH 指纹，然后在出现提示时输入 **root** 用户的密码。
|
||||
|
||||
```shell
|
||||
ssh-copy-id root@ks-master-0
|
||||
```
|
||||
|
||||
下面是密钥复制时，正确的输出结果：
|
||||
|
||||
```shell
|
||||
[root@ks-master-0 ~]# ssh-copy-id root@ks-master-0
|
||||
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_ed25519.pub"
|
||||
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
|
||||
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
|
||||
|
||||
Authorized users only. All activities may be monitored and reported.
|
||||
root@ks-master-0's password:
|
||||
|
||||
Number of key(s) added: 1
|
||||
|
||||
Now try logging into the machine, with: "ssh 'root@ks-master-0'"
|
||||
and check to make sure that only the key(s) you wanted were added.
|
||||
```
|
||||
|
||||
添加并上传 SSH 公钥后，您现在可以执行下面的命令验证，通过 root 用户连接到所有服务器，无需密码验证。
|
||||
|
||||
```shell
|
||||
[root@ks-master-0 ~]# ssh root@ks-master-0
|
||||
# 登陆输出结果 略
|
||||
```
|
||||
|
||||
### 配置服务器时区
|
||||
|
||||
配置服务器时区为 **Asia/Shanghai**。
|
||||
|
||||
```shell
|
||||
timedatectl set-timezone Asia/Shanghai
|
||||
```
|
||||
|
||||
验证服务器时区，正确配置如下：
|
||||
|
||||
```shell
|
||||
[root@ks-master-0 ~]# timedatectl
|
||||
Local time: 一 2023-05-22 10:11:52 CST
|
||||
Universal time: 一 2023-05-22 02:11:52 UTC
|
||||
RTC time: 一 2023-05-22 02:11:52
|
||||
Time zone: Asia/Shanghai (CST, +0800)
|
||||
System clock synchronized: yes
|
||||
NTP service: active
|
||||
RTC in local TZ: no
|
||||
```
|
||||
|
||||
### 安装 chrony 配置时间同步
|
||||
|
||||
安装 chrony 作为时间同步软件：
|
||||
|
||||
```shell
|
||||
yum install chrony
|
||||
```
|
||||
|
||||
修改配置文件 /etc/chrony.conf，修改 ntp 服务器配置
|
||||
|
||||
```shell
|
||||
vi /etc/chrony.conf
|
||||
|
||||
# 删除所有的 pool 配置
|
||||
pool pool.ntp.org iburst
|
||||
|
||||
# 增加国内的 ntp 服务器，或是指定其他常用的时间服务器
|
||||
server ntp.api.bz iburst
|
||||
```
|
||||
|
||||
重启 chrony 服务
|
||||
|
||||
```shell
|
||||
systemctl restart chronyd
|
||||
```
|
||||
|
||||
验证 chrony 同步状态：
|
||||
|
||||
```shell
|
||||
# 执行查看命令
|
||||
chronyc sourcestats -v
|
||||
|
||||
# 正常的输出结果如下
|
||||
[root@ks-master-0 ~]# chronyc sourcestats -v
|
||||
.- Number of sample points in measurement set.
|
||||
/ .- Number of residual runs with same sign.
|
||||
| / .- Length of measurement set (time).
|
||||
| | / .- Est. clock freq error (ppm).
|
||||
| | | / .- Est. error in freq.
|
||||
| | | | / .- Est. offset.
|
||||
| | | | | | On the -.
|
||||
| | | | | | samples. \
|
||||
| | | | | | |
|
||||
Name/IP Address NP NR Span Frequency Freq Skew Offset Std Dev
|
||||
==============================================================================
|
||||
185.53.177.52 0 0 0 +0.000 2000.000 +0ns 4000ms
|
||||
```
|
||||
|
||||
### 关闭系统防火墙
|
||||
|
||||
```shell
|
||||
systemctl stop firewalld && systemctl disable firewalld
|
||||
```
|
||||
|
||||
### 安装系统依赖
|
||||
|
||||
在所有节点上，以 **root** 用户登陆系统，执行下面的命令为 Kubernetes 安装系统基本依赖包。
|
||||
|
||||
```shell
|
||||
# 安装 Kubernetes 系统依赖包
|
||||
yum install curl socat conntrack ebtables ipset ipvsadm
|
||||
|
||||
# 安装其他必备包
|
||||
yum install tar
|
||||
```
|
||||
|
||||
## 安装部署 KubeSphere 和 Kubernetes
|
||||
|
||||
### 下载 KubeKey
|
||||
|
||||
本文将 master-0 节点作为部署节点，把 KubeKey (下文简称 kk) 最新版（3.0.7）二进制文件下载到该服务器。具体 kk 版本号可以在 [kk 发行页面](https://github.com/kubesphere/kubekey/releases)查看。
|
||||
|
||||
- 下载最新版的 KubeKey
|
||||
|
||||
```shell
|
||||
cd ~
|
||||
mkdir kubekey
|
||||
cd kubekey/
|
||||
|
||||
# 选择中文区下载(访问github受限时使用)
|
||||
export KKZONE=cn
|
||||
curl -sfL https://get-kk.kubesphere.io | sh -
|
||||
|
||||
# 也可以使用下面的命令指定具体版本
|
||||
curl -sfL https://get-kk.kubesphere.io | VERSION=v3.0.7 sh -
|
||||
|
||||
# 正确的执行效果如下
|
||||
[root@ks-master-0 ~]# cd ~
|
||||
[root@ks-master-0 ~]# mkdir kubekey
|
||||
[root@ks-master-0 ~]# cd kubekey/
|
||||
[root@ks-master-0 kubekey]# export KKZONE=cn
|
||||
[root@ks-master-0 kubekey]# curl -sfL https://get-kk.kubesphere.io | sh -
|
||||
|
||||
Downloading kubekey v3.0.7 from https://kubernetes.pek3b.qingstor.com/kubekey/releases/download/v3.0.7/kubekey-v3.0.7-linux-amd64.tar.gz ...
|
||||
|
||||
|
||||
Kubekey v3.0.7 Download Complete!
|
||||
|
||||
[root@ks-master-0 kubekey]# ll
|
||||
总用量 111988
|
||||
-rwxr-xr-x 1 root root 78901793 1月 18 09:59 kk
|
||||
-rw-r--r-- 1 root root 35769576 5月 22 10:24 kubekey-v3.0.7-linux-amd64.tar.gz
|
||||
```
|
||||
|
||||
- 查看 KubeKey 支持的 Kubernetes 版本列表
|
||||
|
||||
```shell
|
||||
./kk version --show-supported-k8s
|
||||
|
||||
# 输出如下
|
||||
[root@ks-master-0 kubekey]# ./kk version --show-supported-k8s
|
||||
v1.19.0
|
||||
v1.19.8
|
||||
v1.19.9
|
||||
v1.19.15
|
||||
v1.20.4
|
||||
v1.20.6
|
||||
v1.20.10
|
||||
v1.21.0
|
||||
v1.21.1
|
||||
v1.21.2
|
||||
v1.21.3
|
||||
v1.21.4
|
||||
v1.21.5
|
||||
v1.21.6
|
||||
v1.21.7
|
||||
v1.21.8
|
||||
v1.21.9
|
||||
v1.21.10
|
||||
v1.21.11
|
||||
v1.21.12
|
||||
v1.21.13
|
||||
v1.21.14
|
||||
v1.22.0
|
||||
v1.22.1
|
||||
v1.22.2
|
||||
v1.22.3
|
||||
v1.22.4
|
||||
v1.22.5
|
||||
v1.22.6
|
||||
v1.22.7
|
||||
v1.22.8
|
||||
v1.22.9
|
||||
v1.22.10
|
||||
v1.22.11
|
||||
v1.22.12
|
||||
v1.22.13
|
||||
v1.22.14
|
||||
v1.22.15
|
||||
v1.22.16
|
||||
v1.22.17
|
||||
v1.23.0
|
||||
v1.23.1
|
||||
v1.23.2
|
||||
v1.23.3
|
||||
v1.23.4
|
||||
v1.23.5
|
||||
v1.23.6
|
||||
v1.23.7
|
||||
v1.23.8
|
||||
v1.23.9
|
||||
v1.23.10
|
||||
v1.23.11
|
||||
v1.23.12
|
||||
v1.23.13
|
||||
v1.23.14
|
||||
v1.23.15
|
||||
v1.24.0
|
||||
v1.24.1
|
||||
v1.24.2
|
||||
v1.24.3
|
||||
v1.24.4
|
||||
v1.24.5
|
||||
v1.24.6
|
||||
v1.24.7
|
||||
v1.24.8
|
||||
v1.24.9
|
||||
v1.25.0
|
||||
v1.25.1
|
||||
v1.25.2
|
||||
v1.25.3
|
||||
v1.25.4
|
||||
v1.25.5
|
||||
v1.26.0
|
||||
```
|
||||
|
||||
### 创建 Kubernetes 和 KubeSphere 部署配置文件
|
||||
|
||||
创建集群配置文件，本示例中，选择 KubeSphere v3.3.2 和 Kubernetes v1.25.5，同时，指定配置文件名称为 **kubesphere-v3.3.2.yaml**，如果不指定，默认的文件名为 **config-sample.yaml**。
|
||||
|
||||
```shell
|
||||
./kk create config -f kubesphere-v3.3.2.yaml --with-kubernetes v1.25.5 --with-kubesphere v3.3.2
|
||||
```
|
||||
|
||||
命令执行成功后，在当前目录会生成文件名为 kubesphere-v3.3.2.yaml 的配置文件。
|
||||
|
||||
```shell
|
||||
[root@ks-master-0 kubekey]# ./kk create config -f kubesphere-v3.3.2.yaml --with-kubernetes v1.25.5 --with-kubesphere v3.3.2
|
||||
Generate KubeKey config file successfully
|
||||
[root@ks-master-0 kubekey]# ll
|
||||
总用量 111996
|
||||
-rwxr-xr-x 1 root root 78901793 1月 18 09:59 kk
|
||||
-rw-r--r-- 1 root root 35769576 5月 22 10:24 kubekey-v3.0.7-linux-amd64.tar.gz
|
||||
-rw-r--r-- 1 root root 4680 5月 22 10:25 kubesphere-v3.3.2.yaml
|
||||
```
|
||||
|
||||
本示例采用 3 个节点作为 control-plane 节点同时复用为 worker 节点。
|
||||
|
||||
编辑配置文件 kubesphere-v3.3.2.yaml，修改 hosts 和 roleGroups 等信息，修改说明如下。
|
||||
|
||||
- hosts 指定节点的 IP、ssh 用户、ssh 密码、ss h密钥，示例演示了同时使用密码和密钥的配置方法。
|
||||
- roleGroups 指定 ks-master-0、ks-master-1、ks-master-2 作为 etcd、control-plane、worker节点。
|
||||
- internalLoadbalancer 启用内置的 HAProxy 负载均衡器。
|
||||
|
||||
修改后的示例如下：
|
||||
|
||||
```yaml
|
||||
apiVersion: kubekey.kubesphere.io/v1alpha2
|
||||
kind: Cluster
|
||||
metadata:
|
||||
name: sample
|
||||
spec:
|
||||
hosts:
|
||||
- {name: ks-master-0, address: 192.168.9.91, internalAddress: 192.168.9.91, user: root, password: "P@88w0rd"}
|
||||
- {name: ks-master-1, address: 192.168.9.92, internalAddress: 192.168.9.92, user: root, privateKeyPath: "~/.ssh/id_ed25519"}
|
||||
- {name: ks-master-2, address: 192.168.9.93, internalAddress: 192.168.9.93, user: root, privateKeyPath: "~/.ssh/id_ed25519"}
|
||||
roleGroups:
|
||||
etcd:
|
||||
- ks-master-0
|
||||
- ks-master-1
|
||||
- ks-master-2
|
||||
control-plane:
|
||||
- ks-master-0
|
||||
- ks-master-1
|
||||
- ks-master-2
|
||||
worker:
|
||||
- ks-master-0
|
||||
- ks-master-1
|
||||
- ks-master-2
|
||||
controlPlaneEndpoint:
|
||||
## Internal loadbalancer for apiservers
|
||||
internalLoadbalancer: haproxy
|
||||
|
||||
domain: lb.kubesphere.local
|
||||
address: ""
|
||||
port: 6443
|
||||
kubernetes:
|
||||
version: v1.25.5
|
||||
clusterName: cluster.local
|
||||
autoRenewCerts: true
|
||||
containerManager: containerd
|
||||
etcd:
|
||||
type: kubekey
|
||||
network:
|
||||
plugin: calico
|
||||
kubePodsCIDR: 10.233.64.0/18
|
||||
kubeServiceCIDR: 10.233.0.0/18
|
||||
## multus support. https://github.com/k8snetworkplumbingwg/multus-cni
|
||||
multusCNI:
|
||||
enabled: false
|
||||
registry:
|
||||
privateRegistry: ""
|
||||
namespaceOverride: ""
|
||||
registryMirrors: []
|
||||
insecureRegistries: []
|
||||
addons: []
|
||||
```
|
||||
|
||||
### 部署 KubeSphere 和 Kubernetes
|
||||
|
||||
接下来我们执行下面的命令，使用上面生成的配置文件部署 KubeSphere 和 Kubernetes。
|
||||
|
||||
```shell
|
||||
./kk create cluster -f kubesphere-v3.3.2.yaml
|
||||
```
|
||||
|
||||
上面的命令执行后，首先 kk 会检查部署 Kubernetes 的依赖及其他详细要求。检查合格后，系统将提示您确认安装。输入 **yes** 并按 ENTER 继续部署。
|
||||
|
||||
```shell
|
||||
[root@ks-master-0 kubekey]# ./kk create cluster -f kubesphere-v3.3.2.yaml
|
||||
|
||||
|
||||
_ __ _ _ __
|
||||
| | / / | | | | / /
|
||||
| |/ / _ _| |__ ___| |/ / ___ _ _
|
||||
| \| | | | '_ \ / _ \ \ / _ \ | | |
|
||||
| |\ \ |_| | |_) | __/ |\ \ __/ |_| |
|
||||
\_| \_/\__,_|_.__/ \___\_| \_/\___|\__, |
|
||||
__/ |
|
||||
|___/
|
||||
|
||||
10:32:17 CST [GreetingsModule] Greetings
|
||||
10:32:17 CST message: [ks-master-2]
|
||||
Greetings, KubeKey!
|
||||
10:32:18 CST message: [ks-master-0]
|
||||
Greetings, KubeKey!
|
||||
10:32:18 CST message: [ks-master-1]
|
||||
Greetings, KubeKey!
|
||||
10:32:18 CST success: [ks-master-2]
|
||||
10:32:18 CST success: [ks-master-0]
|
||||
10:32:18 CST success: [ks-master-1]
|
||||
10:32:18 CST [NodePreCheckModule] A pre-check on nodes
|
||||
10:32:22 CST success: [ks-master-0]
|
||||
10:32:22 CST success: [ks-master-2]
|
||||
10:32:22 CST success: [ks-master-1]
|
||||
10:32:22 CST [ConfirmModule] Display confirmation form
|
||||
+-------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+
|
||||
| name | sudo | curl | openssl | ebtables | socat | ipset | ipvsadm | conntrack | chrony | docker | containerd | nfs client | ceph client | glusterfs client | time |
|
||||
+-------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+
|
||||
| ks-master-0 | y | y | y | y | y | y | y | y | y | | | y | | | CST 10:32:22 |
|
||||
| ks-master-1 | y | y | y | y | y | y | y | y | y | | | y | | | CST 10:32:22 |
|
||||
| ks-master-2 | y | y | y | y | y | y | y | y | y | | | y | | | CST 10:32:22 |
|
||||
+-------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+
|
||||
|
||||
This is a simple check of your environment.
|
||||
Before installation, ensure that your machines meet all requirements specified at
|
||||
https://github.com/kubesphere/kubekey#requirements-and-recommendations
|
||||
|
||||
Continue this installation? [yes/no]:
|
||||
```
|
||||
|
||||
部署完成需要大约10-30分钟左右，具体看网速和机器配置。
|
||||
|
||||
部署完成后，您应该会在终端上看到类似于下面的输出。提示部署完成的同时，输出中还会显示用户登陆 KubeSphere 的默认管理员用户和密码。
|
||||
|
||||
```yaml
|
||||
clusterconfiguration.installer.kubesphere.io/ks-installer created
|
||||
10:50:36 CST skipped: [ks-master-2]
|
||||
10:50:36 CST skipped: [ks-master-1]
|
||||
10:50:36 CST success: [ks-master-0]
|
||||
#####################################################
|
||||
### Welcome to KubeSphere! ###
|
||||
#####################################################
|
||||
|
||||
Console: http://192.168.9.91:30880
|
||||
Account: admin
|
||||
Password: P@88w0rd
|
||||
NOTES：
|
||||
1. After you log into the console, please check the
|
||||
monitoring status of service components in
|
||||
"Cluster Management". If any service is not
|
||||
ready, please wait patiently until all components
|
||||
are up and running.
|
||||
2. Please change the default password after login.
|
||||
|
||||
#####################################################
|
||||
https://kubesphere.io 2023-05-22 11:02:08
|
||||
#####################################################
|
||||
11:02:12 CST skipped: [ks-master-2]
|
||||
11:02:12 CST skipped: [ks-master-1]
|
||||
11:02:12 CST success: [ks-master-0]
|
||||
11:02:12 CST Pipeline[CreateClusterPipeline] execute successfully
|
||||
Installation is complete.
|
||||
|
||||
Please check the result using the command:
|
||||
|
||||
kubectl logs -n kubesphere-system $(kubectl get pod -n kubesphere-system -l 'app in (ks-install, ks-installer)' -o jsonpath='{.items[0].metadata.name}') -f
|
||||
```
|
||||
|
||||
### 部署验证
|
||||
|
||||
1. 验证 KubeSphere 管理控制台
|
||||
|
||||
我们打开浏览器访问 master-0 节点的 IP 地址和端口 **30880**，可以看到 KubeSphere 管理控制台的登录页面。
|
||||
|
||||
输入默认用户 **admin** 和默认密码 **P@88w0rd**，然后点击「登录」。
|
||||
|
||||
|
||||
|
||||
登录后，系统会要求您更改 KubeSphere 默认用户 admin 的默认密码，输入新的密码并点击「提交」。
|
||||
|
||||
|
||||
|
||||
提交完成后，系统会跳转到 KubeSphere admin 用户工作台页面，该页面显示了当前 KubeSphere 版本为 v3.3.2，可用的 Kubernetes 集群数量为 1。
|
||||
|
||||
|
||||
|
||||
接下来，单击左上角的「平台管理」菜单，选择「集群管理」。
|
||||
|
||||
|
||||
|
||||
进入集群管理界面，在该页面可以查看集群的基本信息，包括集群资源用量、Kubernetes 状态、节点资源用量 Top、系统组件、工具箱等内容。
|
||||
|
||||
|
||||
|
||||
单击左侧「节点」菜单，点击「集群节点」可以查看 Kubernetes 集群可用节点的详细信息。
|
||||
|
||||
|
||||
|
||||
单击左侧「系统组件」菜单，可以查看已安装组件的详细信息。目前集群采用的最小化安装，仅包含 KubeSphere、Kubernetes、监控三个类别的组件。
|
||||
|
||||
|
||||
|
||||
2. 命令行验证集群信息
|
||||
|
||||
在 master-0 节点运行 kubectl 命令获取 Kubernetes 集群上的可用节点列表。
|
||||
|
||||
```shell
|
||||
kubectl get nodes -o wide
|
||||
```
|
||||
|
||||
在输出结果中可以看到，当前的 Kubernetes 集群有三个可用节点、节点的内部 IP、节点角色、节点的 Kubernetes 版本号、容器运行时及版本号、操作系统类型及内核版本等信息。
|
||||
|
||||
```shell
|
||||
[root@ks-master-0 kubekey]# kubectl get nodes -o wide
|
||||
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
|
||||
ks-master-0 Ready control-plane,worker 25m v1.25.5 192.168.9.91 <none> openEuler 22.03 (LTS-SP1) 5.10.0-136.12.0.86.oe2203sp1.x86_64 containerd://1.6.4
|
||||
ks-master-1 Ready control-plane,worker 24m v1.25.5 192.168.9.92 <none> openEuler 22.03 (LTS-SP1) 5.10.0-136.12.0.86.oe2203sp1.x86_64 containerd://1.6.4
|
||||
ks-master-2 Ready control-plane,worker 24m v1.25.5 192.168.9.93 <none> openEuler 22.03 (LTS-SP1) 5.10.0-136.12.0.86.oe2203sp1.x86_64 containerd://1.6.4
|
||||
```
|
||||
|
||||
输入以下命令获取在 Kubernetes 集群上运行的 Pod 列表。
|
||||
|
||||
```shell
|
||||
kubectl get pods --all-namespaces
|
||||
```
|
||||
|
||||
在输出结果中可以看到， Kubernetes 集群上有多个可用的命名空间 kube-system、kubesphere-control-system、kubesphere-monitoring-system 和 kubesphere-system，所有 pod 都在运行。
|
||||
|
||||
```shell
|
||||
[root@ks-master-0 kubekey]# kubectl get pods --all-namespaces
|
||||
NAMESPACE NAME READY STATUS RESTARTS AGE
|
||||
kube-system calico-kube-controllers-75c594996d-p2bzw 1/1 Running 0 24m
|
||||
kube-system calico-node-d8n6f 1/1 Running 0 24m
|
||||
kube-system calico-node-pfsvg 1/1 Running 0 24m
|
||||
kube-system calico-node-rlhw2 1/1 Running 0 24m
|
||||
kube-system coredns-67ddbf998c-glxfn 1/1 Running 0 25m
|
||||
kube-system coredns-67ddbf998c-ljrxm 1/1 Running 0 25m
|
||||
kube-system kube-apiserver-ks-master-0 1/1 Running 0 25m
|
||||
kube-system kube-apiserver-ks-master-1 1/1 Running 0 24m
|
||||
kube-system kube-apiserver-ks-master-2 1/1 Running 0 24m
|
||||
kube-system kube-controller-manager-ks-master-0 1/1 Running 0 25m
|
||||
kube-system kube-controller-manager-ks-master-1 1/1 Running 0 24m
|
||||
kube-system kube-controller-manager-ks-master-2 1/1 Running 0 24m
|
||||
kube-system kube-proxy-8fv9q 1/1 Running 0 24m
|
||||
kube-system kube-proxy-b47p2 1/1 Running 0 24m
|
||||
kube-system kube-proxy-b9f8l 1/1 Running 0 24m
|
||||
kube-system kube-scheduler-ks-master-0 1/1 Running 0 25m
|
||||
kube-system kube-scheduler-ks-master-1 1/1 Running 0 24m
|
||||
kube-system kube-scheduler-ks-master-2 1/1 Running 0 24m
|
||||
kube-system nodelocaldns-8bbf2 1/1 Running 0 24m
|
||||
kube-system nodelocaldns-9kgm2 1/1 Running 0 25m
|
||||
kube-system nodelocaldns-mrtwr 1/1 Running 0 24m
|
||||
kube-system openebs-localpv-provisioner-57d95c6875-z9wwq 1/1 Running 0 24m
|
||||
kube-system snapshot-controller-0 1/1 Running 0 22m
|
||||
kubesphere-controls-system default-http-backend-5d5c44d77f-mcngb 1/1 Running 0 19m
|
||||
kubesphere-controls-system kubectl-admin-788ff75cd7-k59nr 1/1 Running 0 13m
|
||||
kubesphere-monitoring-system kube-state-metrics-6cc9478499-82hwl 3/3 Running 0 16m
|
||||
kubesphere-monitoring-system node-exporter-b22bs 2/2 Running 0 16m
|
||||
kubesphere-monitoring-system node-exporter-qqms9 2/2 Running 0 16m
|
||||
kubesphere-monitoring-system node-exporter-zr9zp 2/2 Running 0 16m
|
||||
kubesphere-monitoring-system prometheus-k8s-0 2/2 Running 0 16m
|
||||
kubesphere-monitoring-system prometheus-k8s-1 2/2 Running 0 16m
|
||||
kubesphere-monitoring-system prometheus-operator-6bd484db88-7qdkk 2/2 Running 0 16m
|
||||
kubesphere-system ks-apiserver-6797fc669-tttcb 1/1 Running 0 19m
|
||||
kubesphere-system ks-console-6f9d57b699-ps4l2 1/1 Running 0 19m
|
||||
kubesphere-system ks-controller-manager-6656d4f57d-mfmz7 1/1 Running 0 19m
|
||||
kubesphere-system ks-installer-55b8b4c4d9-srgfw 1/1 Running 0 24m
|
||||
```
|
||||
|
||||
至此，我们已经部署了具有三个 openEuler 服务器节点的最小化的 Kubernetes 集群和 KubeSphere。我们还通过 KubeSphere 管理控制台和命令行界面查看了集群的状态。
|
||||
|
||||
接下来我们将在 Kubernetes 集群上部署一个简单的 Nginx Web 服务器，测试验证Kubernetes 和 KubeSphere 正常可用。
|
||||
|
||||
## 部署测试资源
|
||||
|
||||
本示例使用命令行工具在 Kubernetes 集群上部署一个 Nginx Web服务器并利用 KubeSphere 图形化管理控制台查看部署的资源信息。
|
||||
|
||||
### 创建 Nginx Deployment
|
||||
|
||||
运行以下命令创建一个部署 Nginx Web 服务器的 Deployment。此示例中，我们将创建具有两个副本基于 nginx:alpine 镜像的 Pod。
|
||||
|
||||
```shell
|
||||
kubectl create deployment nginx --image=nginx:alpine --replicas=2
|
||||
```
|
||||
|
||||
### 创建 Nginx Service
|
||||
|
||||
创建一个新的 Kubernetes 服务，服务名称 nginx，服务类型 Nodeport，对外的服务端口 80。
|
||||
|
||||
```shell
|
||||
kubectl create service nodeport nginx --tcp=80:80
|
||||
```
|
||||
|
||||
### 验证 Nginx Deployment 和 Pod
|
||||
|
||||
运行以下命令查看创建的 Deployment 和 Pod 资源。
|
||||
|
||||
```shell
|
||||
kubectl get deployment -o wide
|
||||
kubectl get pods -o wide
|
||||
```
|
||||
|
||||
查看结果如下：
|
||||
|
||||
```shell
|
||||
[root@ks-master-0 kubekey]# kubectl get deployment -o wide
|
||||
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
|
||||
nginx 2/2 2 2 20s nginx nginx:alpine app=nginx
|
||||
|
||||
[root@ks-master-0 kubekey]# kubectl get pods -o wide
|
||||
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
|
||||
nginx-55f494c486-t44l4 1/1 Running 0 35s 10.233.69.7 ks-master-0 <none> <none>
|
||||
nginx-55f494c486-x62zs 1/1 Running 0 35s 10.233.102.5 ks-master-2 <none> <none>
|
||||
```
|
||||
|
||||
### 验证 Nginx Service
|
||||
|
||||
运行一下命令查看可用的服务列表，在列表中我们可以看到 nginx 服务类型 为 Nodeport，并在 Kubernetes 主机上开放了 **30563** 端口。
|
||||
|
||||
```shell
|
||||
kubectl get svc -o wide
|
||||
```
|
||||
|
||||
查看结果如下：
|
||||
|
||||
```shell
|
||||
[root@ks-master-0 kubekey]# kubectl get svc -o wide
|
||||
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
|
||||
kubernetes ClusterIP 10.233.0.1 <none> 443/TCP 27m <none>
|
||||
nginx NodePort 10.233.36.81 <none> 80:30563/TCP 37s app=nginx
|
||||
```
|
||||
|
||||
### 访问 Nginx 服务
|
||||
|
||||
运行以下命令访问部署的 Nginx 服务，验证服务是否成功部署。
|
||||
|
||||
- 验证直接访问 Pod
|
||||
|
||||
```shell
|
||||
curl 10.233.69.7
|
||||
|
||||
# 访问结果如下
|
||||
[root@ks-master-0 kubekey]# curl 10.233.69.7
|
||||
<!DOCTYPE html>
|
||||
<html>
|
||||
<head>
|
||||
<title>Welcome to nginx!</title>
|
||||
<style>
|
||||
html { color-scheme: light dark; }
|
||||
body { width: 35em; margin: 0 auto;
|
||||
font-family: Tahoma, Verdana, Arial, sans-serif; }
|
||||
</style>
|
||||
</head>
|
||||
<body>
|
||||
<h1>Welcome to nginx!</h1>
|
||||
<p>If you see this page, the nginx web server is successfully installed and
|
||||
working. Further configuration is required.</p>
|
||||
|
||||
<p>For online documentation and support please refer to
|
||||
<a href="http://nginx.org/">nginx.org</a>.<br/>
|
||||
Commercial support is available at
|
||||
<a href="http://nginx.com/">nginx.com</a>.</p>
|
||||
|
||||
<p><em>Thank you for using nginx.</em></p>
|
||||
</body>
|
||||
</html>
|
||||
```
|
||||
|
||||
- 验证访问 Service
|
||||
|
||||
```shell
|
||||
curl 10.233.36.81
|
||||
|
||||
# 访问结果同上，略
|
||||
```
|
||||
|
||||
- 验证访问 Nodeport
|
||||
|
||||
```shell
|
||||
curl 192.168.9.91:30563
|
||||
|
||||
# 访问结果同上，略
|
||||
```
|
||||
|
||||
### 在管理控制台查看
|
||||
|
||||
接下来我们回到 KubeSphere 管理控制台，在管理控制台查看已经创建的资源。
|
||||
|
||||
> **说明：** KubeSphere 的管理控制台具有友好地、图形化创建 Kubernetes 各种资源的功能，主要是截图太麻烦了，所以本文采用了命令行的方式简单的创建了测试资源。
|
||||
>
|
||||
> 只是在查看的时候给大家演示一下 KubeSphere 管理控制台的基本功能，实际使用中，大家可以使用图形化方式创建和管理 Kubernetes 资源。
|
||||
|
||||
- 登录 KubeSphere 管理控制台，点击「平台管理」，选择「集群管理」。
|
||||
- 单击集群管理页面左侧的「应用负载」，点击「工作负载」。默认会看到所有类型为**部署**的工作负载。
|
||||
|
||||
我们使用的是 admin 账户，因此可以看到所有的工作负载，在搜索框输入 nginx，只显示 nginx 部署工作负载。
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
- 单击部署列表中的 nginx，可以查看更详细的信息，并且管理 nginx 部署(Deployment)。
|
||||
|
||||
|
||||
|
||||
- 回到「平台管理」-「集群管理」页面，单击集群管理页面左侧的「应用负载」，点击「服务」。默认会看到所有类型为**服务**的工作负载。
|
||||
|
||||
我们使用的是 admin 账户，因此可以看到所有的工作负载，在搜索框输入 nginx，只显示 nginx 服务工作负载。
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
- 单击服务列表中的 nginx，可以查看更详细的信息，并且管理 nginx 服务(Service)。
|
||||
|
||||
|
||||
|
||||
至此，我们实现了将 Nginx Web 服务器部署到 Kubernetes 集群，并通过 KubeSphere 管理控制台查看、验证了部署的Deployment、Pod、Service的详细信息。
|
||||
|
||||
## 结束语
|
||||
|
||||
本文主要介绍了在三台 openEuler 22.03 LTS SP1 服务器上利用 KubeKey 自动化部署 KubeSphere 和 Kubernetes 高可用集群的详细过程。
|
||||
|
||||
部署完成后，我们还利用 KubeSphere 管理控制台和 kubectl 命令行，查看并验证了 KubeSphere 和 Kubernetes 集群的状态。
|
||||
|
||||
最终我们通过在 Kubenetes 集群上部署 Nginx Web服务器验证了 Kubernetes 集群和 KubeSphere 的可用性，并通过在 KubeSphere 管理控制台查看 Nginx Pod 和 服务状态的操作，了解了 KubeSphere 的基本用法。
|
||||
|
|
@ -12,10 +12,6 @@ snapshot: 'https://pek3b.qingstor.com/kubesphere-community/images/kubesphere-on-
|
|||
|
||||
## 前言
|
||||
|
||||

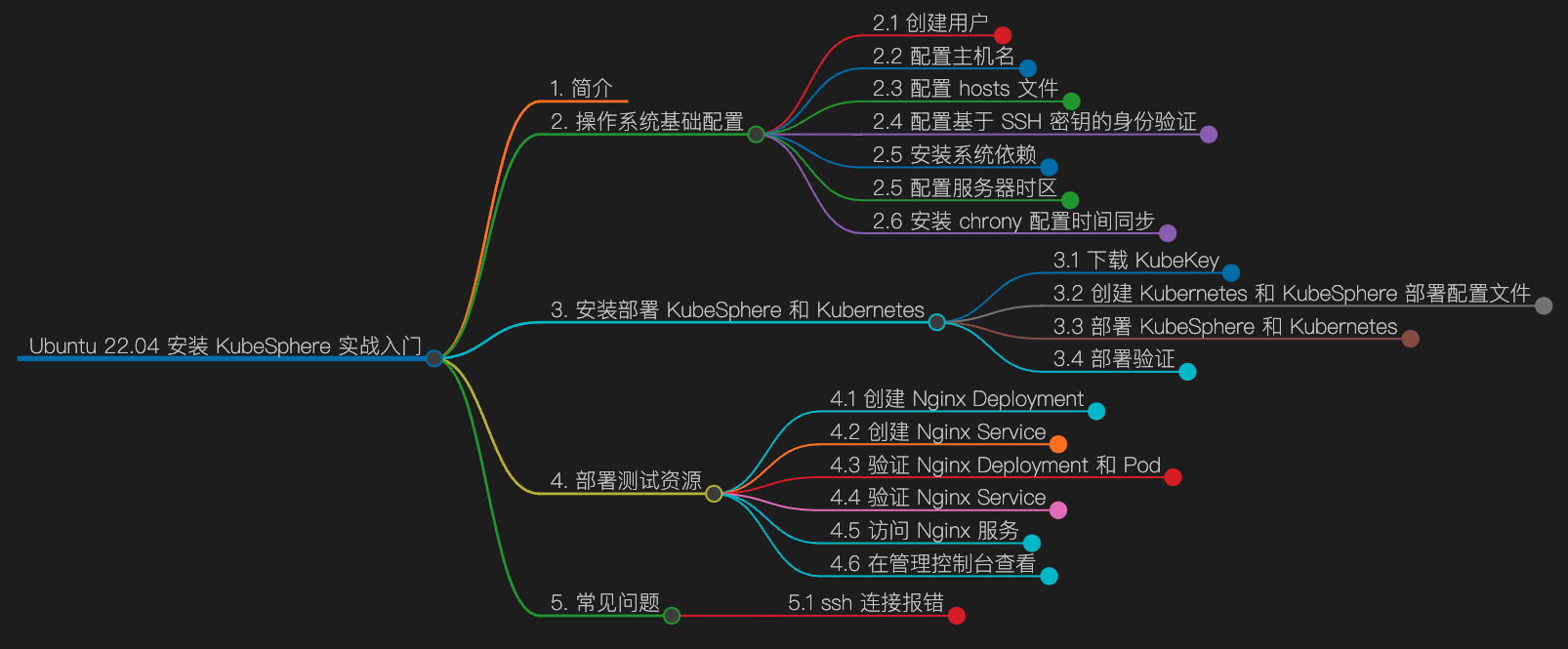

### **导图**
|
||||
|
||||
|
||||
|
||||
### **知识点**
|
||||
|
||||
- 定级：**入门级**
|
||||
|
|
|
|||
Loading…
Reference in New Issue
